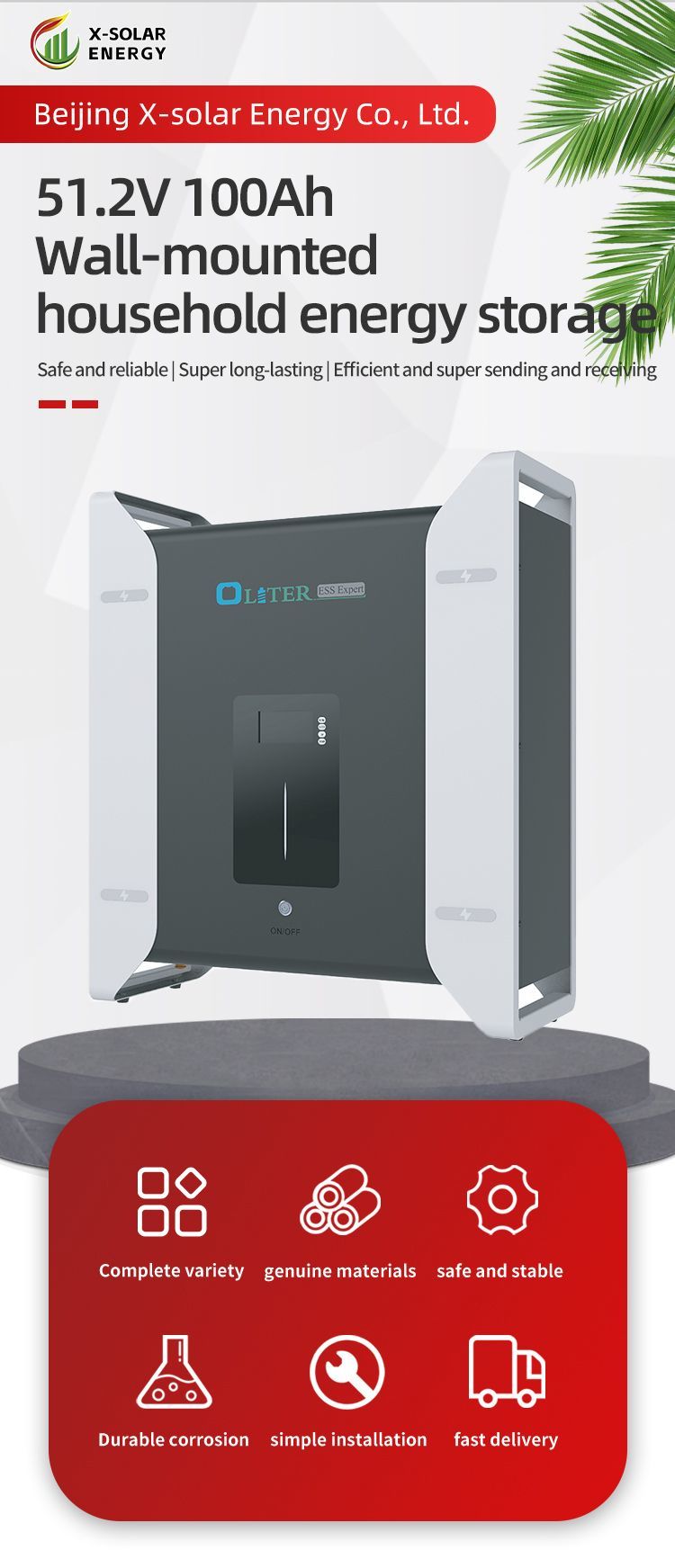

Energy 52V 100Ah Lithium Solar System Battery Power Supply for Low
Pressure Wall-Mounted Black Home Energy Storage Container
Home Use Low Pressure 51.2V 100Ah Energy Storage SystemProduct Description
Product Parameters
Detailed Photos
Installation Instructions
Technical parameter
Technical Specifications | OTW48100 | OTW48200 |
Installation form | Wall hanging / landing | Wall hanging / landing |
Battery type | lithium battery |
Rated voltage(V) | 51.2 | 51.2 |
rated capacity (Wh) | 5120 | 10240 |
Effective capacity(Wh) | 4096 | 8192 |
designed life | 10+ years | 10+ years |
Dimensions | 484*195*596 mm | 558*282*664 mm |
| Weight(kg) | 47 | 89 |
The Charge / Discharge current is recommended (A) | 50 | 50 |
Maximum discharge current (A) | 100 | 100 |
communication | RS485/RS232/CAN |
Monitoring parameters | System voltage, current, battery voltage, battery temperature, and
module temperature |
| soc | Intelligent algorithm |
Operating temperature | 0ºC~50ºC charge -10ºC ~50ºC |
Storage temperature | -20~60 ºC |
Company Profile
Beijing X-Solar Energy Co., Ltd. was found in 2020, and
headquartered in Beijing. It's a science and technology innovative
energy enterprises with the main business of future cell R&D,
flexible photovoltaic modules, building photovoltaic module
production, high-end equipment manufacturing, production line
delivery, and AI-CITY wisdom energy management services.
In July 2023, the company's first demonstration factory, Jiangsu
X-Solar Green-building Technology Co., Ltd., was established in
Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng
FengSheng Intelligent Manufacturing Technology Co., Ltd., a
wholly-owned equipment company of the company, delivered the
world's first "three-in-one" automatic production line for Jiangyin
base. The production line can be compatible with the production of
three categories: X-Solar Light shadow series (flexible PV
modules), X-Solar Light rhyme series (building PVtile modules),
X-Solar Light Curtain series (building PV wall modules), and
customized products. X-Solar PV series products have the advantages
of integrating architectural aesthetics, complying with design
specifications and creating energy value, which have been widely
recognized and praised by customers in domestic and overseas.
In 2024, the company has added two regional centers in Shanghai and
Guangzhou of China, and set up the Hong Kong X-Solar Future Energy
Research Institute, and overseas sales companies in Australia,
Italy, Germany, Saudi Arabia and Argentina. The company has
launched a global layout to provide sustainable energy products and
services to many countries, and has contributed to the "carbon
neutrality and carbon peak".
Exhibition Display
FAQ
1.Is this 52v rack mount battery safe?
Our 52V lifepo4 battery pack is equipped with an intelligent
lithium battery management system.8 Level safety protection:over
charge,over current,over discharge,temperature,precharge,voltage
balance,short circuit,open circuit,withi BMS smart protection
embedded protect you in safe.
2.What are the advantages of this lifepo4 batteries?
Lifepo4 battery have compact size and light weight.the lifepo4
battery have advanced Structural design,Elcetrical design,Fluid
simulation design,Professional matching verfication test of BMS and
cells,verification.
3.what's the cycle life of the 52v lifepo4 batteries?
The battery cycle life is over 6000 times.Almost no memory effect
with low self-discharge rate.
4.Modular and easy installation
Modular battery is easy installation and support 8 single string
and 16 parallel connection.
5.Convenient socket
Positive and negative poles are designed with convenient
sockets,Just plug and use.
6.What inverter can this battery fit into?
The battery can be adapted to the mainstream inverters on the
market.
