Basic Info.
Application
Photovoltaic Venues, Greenhouse, Sun-shading Device, Curtain Wall,
Roof
Optimum Operation Voltage
44.19 V
Optimum Operating Current
13.13A
Open- Circuit Voltage
53.03V
Short-Circuit Voltage
13.86A
Module Operating Temperature Range
-40-85
Max. System Voltage
DC 1000/ 1500V (IEC)
Power Tolerance Range
0-5W
Rated Operating Temperature of The Cell
44 Degree
Max. Powewr Temperature Coefficient
-0.26 %
Open-Circuit Voltage Temperature Coeffic
-0.24%
Short-Circuit Voltage Temperature Coeffi
0.04%
Transport Package
Wooden Box
Specification
2260*1219*3mm
Production Capacity
50000 Pieces Per Year
Packaging & Delivery
Package Size
226.00cm * 122.00cm * 0.30cm
Package Gross Weight
9.100kg
Product Description

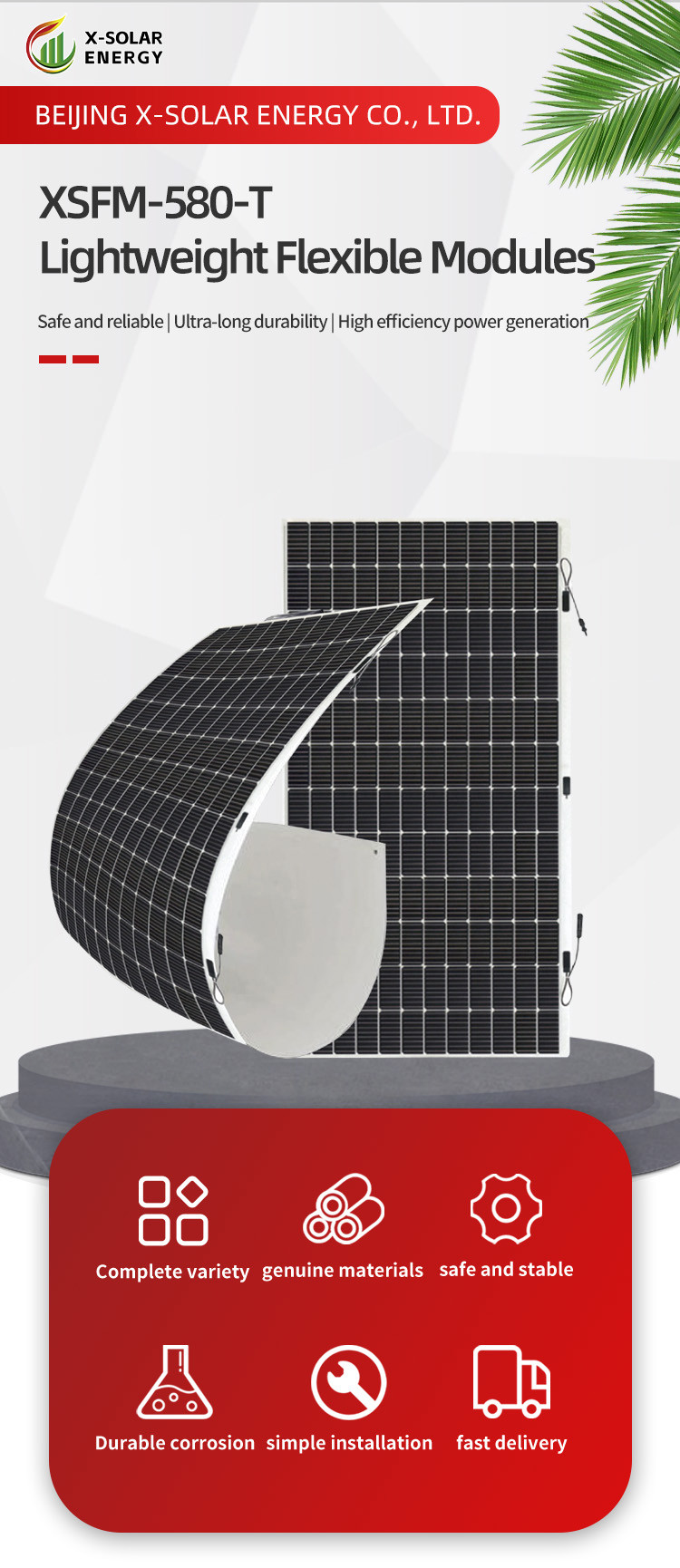

580W Soft Solar Panel For Roof Material
Product Description
Product Advantage
Product Application
Basic information| Basic information | Data |
| cell type | TOPCon cell 182*91 mm |
| cell arrangement | 144 pcs(12*12) |
| module size | 2260*1219*3 mm |
| Module weight | 9.1KG |
| Junction box | Enclosure rating IP68 |
| Output cable | 4mm2, 500mm cable net length. cable length can be customized |
| Connector registration | MC4 compatibility |
| Frame | N/A |
| Front static load (snow pressure) | 2400Pa |
| Rear static load (wind pressure) | N/A |
Packing Details
| transportation | Platform Lorry | Platform Lorry | Container |
| size | 13m | 17.5 | 40 degree |
| pallet | 22 | 28 | / |
| piece/pallet | 45 | 45 | / |
| Total pieces | 990 | 1260 | / |
Company Profile
Beijing X-Solar Energy Co., Ltd. was found in 2020, and
headquartered in Beijing. It's a science and technology innovative
energy enterprises with the main business of future cell R&D,
flexible photovoltaic modules, building photovoltaic module
production, high-end equipment manufacturing, production line
delivery, and AI-CITY wisdom energy management services.
In July 2023, the company's first demonstration factory, Jiangsu
X-Solar Green-building Technology Co., Ltd., was established in
Jiangyin CNBM Jetion Industrial Park. Meanwhile, Jiangsu YuanTeng
FengSheng Intelligent Manufacturing Technology Co., Ltd., a
wholly-owned equipment company of the company, delivered the
world's first "three-in-one" automatic production line for Jiangyin
base. The production line can be compatible with the production of
three categories: X-Solar Light shadow series (flexible PV
modules), X-Solar Light rhyme series (building PVtile modules),
X-Solar Light Curtain series (building PV wall modules), and
customized products. X-Solar PV series products have the advantages
of integrating architectural aesthetics, complying with design
specifications and creating energy value, which have been widely
recognized and praised by customers in domestic and overseas.
In 2024, the company has added two regional centers in Shanghai and
Guangzhou of China, and set up the Hong Kong X-Solar Future Energy
Research Institute, and overseas sales companies in Australia,
Italy, Germany, Saudi Arabia and Argentina. The company has
launched a global layout to provide sustainable energy products and
services to many countries, and has contributed to the "carbon
neutrality and carbon peak".
Production Process
FAQ
1.Q:How about the power generation efficiency, durability, and ease
of installation of lightweight and flexible photovoltaic modules?
A:Our soft modules adopt the latest technology, with high power
conversion rate and durability. The unique flexible design makes
installation more flexible and convenient, and can adapt to various
complex terrain and curved surface installation requirements.
Compared with conventional crystalline silicon modules, our soft
modules only need to be directly attached to the surface with
building structural adhesive, and do not need to be installed with
brackets, saving installation raw materials and labor costs.
2.Q:How do the prices of photovoltaic flexible modules compare with
those of conventional crystalline silicon modules?
A:We understand your concern about price. Although the initial
investment may be slightly higher than that of conventional
crystalline silicon modules, considering the high power generation
efficiency and long life of photovoltaic flexible modules, its
long-term benefits will far exceed those of conventional
crystalline silicon modules. In addition, our products also have
lower installation and maintenance costs and longer service life,
bringing you a higher return on investment.
3. Q:Whether PV flexible modules are suitable for our specific
installation environment or project requirements.
A:Photovoltaic flexible modules have a wide range of application
scenarios, including but not limited to roofs, carports, boat
roofs, tents, awnings, etc. Its unique flexible design makes
installation no longer limited by the limitations of traditional
rigid materials, and can easily adapt to various complex
environments and project requirements. Our professional technical
team will provide customized solutions based on your specific
needs.
4 Q:How about the after-sales service and quality guarantee policy?
A:Our soft module products have a 12-year warranty and a 25-year
power warranty. Our flat and curved tiles have a 15-year warranty
and a 30-year power warranty. We attach great importance to
after-sales service and customer satisfaction. We provide
comprehensive after-sales service support, including product
installation guidance, regular maintenance inspections, and
fast-response repair services to ensure that you have no worries
after purchase.
5 Q:What are the differences and advantages of your products over
other companies' products?
A:In the field of photovoltaic modules, we have always maintained a
leading position in technology and market. Our products are
superior to similar products in terms of performance, durability,
and ease of installation. We are fully aware of the fierce market
competition, so we continue to invest in research and development
and innovation to provide better products and services to meet
customer needs.
6 Q:Policy support and subsidies: Different regions have different
policy support and subsidy levels for photovoltaic products, and
customers may have questions about this.
A:Depending on the policies of different regions, you may enjoy
different amounts of subsidies and tax benefits. We are willing to
consult relevant information for you.
7 Q:What kind of project cases do you have?
A:Our products have a wide range of applications, such as: building
BIPV, mobile energy, agricultural and animal husbandry greenhouses,
etc. For details, please see our product case collection.
8 Q:What are the precautions for installing your products?
A:The following matters need to be noted:
I. Please be sure to read the installation manual of our products
in detail before installation
II. Prepare all necessary preparation tools and auxiliary materials
in advance
III. Check whether the installation environment, electrical
connections, etc. meet the installation requirements
V. Perform step-by-step installation and safe operation according
to the manual
VI. Perform debugging and inspection after installation is
completed
VII. Keep relevant certificates: purchase certificate, installation
manual and any relevant warranty information
9 Q:What is the additional load after installation?
A:Under normal circumstances, the surface load that our products
can withstand is 2400pa. We understand that the specific needs of
each project may be different, so we also provide customized
products and services to meet your unique load and performance
requirements.
